Soumya's Database Blog : Oracle WebLogic Server 12cR2 (12.2.1.4) Installation on Oracle Linux 6

Assumptions

It is assumed that you have an existing server with either Oracle Linux 6.x or 7.x installed on it.

Software

Download the Weblogic Server 12c software from Oracle Technology Network.

Oracle Fusion Middleware 12c Infrastructure 12.2.1.4.0

We would use the fustion middleware infrastructure pack as we would be installing forms and reports 12c services later.

Make sure Java is installed properly .Check exact java version using

$ alternatives --config java

Selection Command

-----------------------------------------------

1 /usr/lib/jvm/jre-1.7.0-openjdk.x86_64/bin/java

2 /usr/lib/jvm/jre-1.6.0-openjdk.x86_64/bin/java

+ 3 /usr/java/jdk1.8.0_05/bin/java

Setup

The following actions should be performed by the "root" user.

Make sure the "/etc/hosts" file contains correct entries for both the "localhost" and real host names.

127.0.0.1      localhost localhost.localdomain localhost4 localhost4.localdomain4

10.0.95.10 test.soumya.com test

Create a new group and user.

groupadd -g 54321 oinstall

useradd -u 54321 -g oinstall oracle

passwd oracle

Create the directories in which the Oracle software will be installed.

mkdir -p /d01/app/oracle/product/12.2.1.4

chown -R oracle:oinstall /d01

chmod -R 775 /d01/

Create an environment file named app_env

Add the following line in .bash_profile

alias app_env='. /home/oracle/app_env'

vi /home/oracle/app_env

ORACLE_BASE=/d01/app/oracle; export ORACLE_BASE

ORACLE_HOME=$ORACLE_BASE/product/12.2.1.4; export ORACLE_HOME

MW_HOME=$ORACLE_HOME ; export MW_HOME

WLS_HOME=$MW_HOME/wlserver; export WLS_HOME

WL_HOME=$WLS_HOME  ;export WLS_HOME

DOMAIN_HOME=/d01/app/oracle/product/12.2.1.4/user_projects/domains/prod_domain; export DOMAIN_HOME

JAVA_HOME=/usr/java/jdk1.8.0_231-amd64; export JAVA_HOME

export OHS_INST=/d01/app/oracle/product/12.2.1.4/user_projects/domains/prod_domain/config/fmwconfig/components/OHS/instances/ohs1 ;export OHS_INST

PATH=$JAVA_HOME/bin:$PATH ; export PATH

export LD_LIBRARY_PATH=$ORACLE_HOME/lib:/lib:/usr/lib

export CLASSPATH=$ORACLE_HOME/jlib:$ORACLE_HOME/rdbms/jlib

export FORMS_PATH=/d01/app/oracle/product/12.2.1.4/forms; export FORMS_PATH

[root@mesappprod u01]# rpm -Uvh jdk-8u241-linux-x64.rpm

Preparing... ################################# [100%]

Updating / installing...

1:jdk1.8-2000:1.8.0_241-fcs ################################# [100%]

Unpacking JAR files...

tools.jar...

plugin.jar...

javaws.jar...

deploy.jar...

rt.jar...

jsse.jar...

charsets.jar...

localedata.jar...

[root@mesappprod u01]# java -version

openjdk version "1.8.0_242"

OpenJDK Runtime Environment (build 1.8.0_242-b08)

OpenJDK 64-Bit Server VM (build 25.242-b08, mixed mode)

[root@mesappprod u01]# alternatives --config java

There are 2 programs which provide 'java'.

Selection Command

-----------------------------------------------

*+ 1 java-1.8.0-openjdk.x86_64 (/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.242.b08-0.el7_7.x86_64/jre/bin/java)

2 /usr/java/jdk1.8.0_241-amd64/jre/bin/java

Enter to keep the current selection[+], or type selection number: 2

For Oracle Linux 6, as specified in MOS Note [ID 1487773.1], amend the "/etc/security/limits.d/90-nproc.conf" file, making the following change.

# From

*          soft    nproc     1024

#To

* - nproc 16384

Run the installer as the "oracle" user.

[oracle@weblogic_sw]$ unzip fmw_12.2.1.4.0_infrastructure_Disk1_1of1.zip

$ $JAVA_HOME/bin/java -jar fmw_12.2.1.4.0_infrastructure.jar

If this is is the first installation on the machine you will need to specify an inventory location. Enter the inventory location, like "/u01/app/oraInventory" and click the "OK" button. In our case we had database installed previously on the same machine hence it didn’t ask for inventory location.

Select the "Skip Auto Updates" options, then click the "next" button.

Enter the middleware home ("/u01/app/oracle/product/12.2.1") and click the "Next" button.

Accept the "Fusion Middleware Infrastructure" option by clicking the "Next" button.

Wait for the prerequisite checks to complete. If there are failures, correct them and rerun the checks. If there are no failures, click the "Next" button.

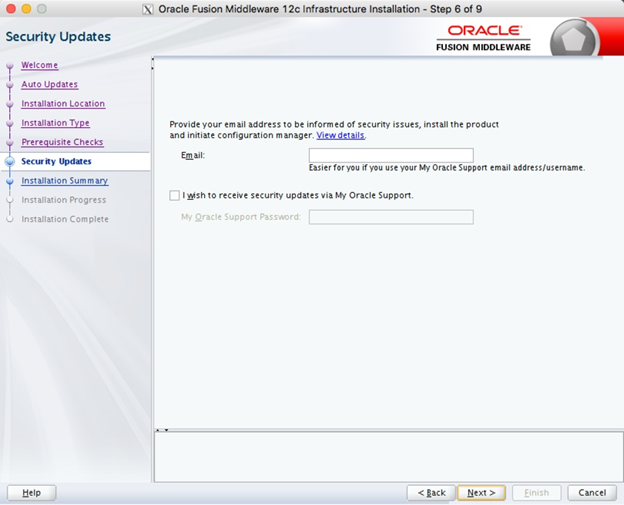

Enter your support details, or leave it unchecked the security updates checkbox. Click the "Next" button. If you chose not to receive security updates, click the "Yes" button on the warning dialog.
